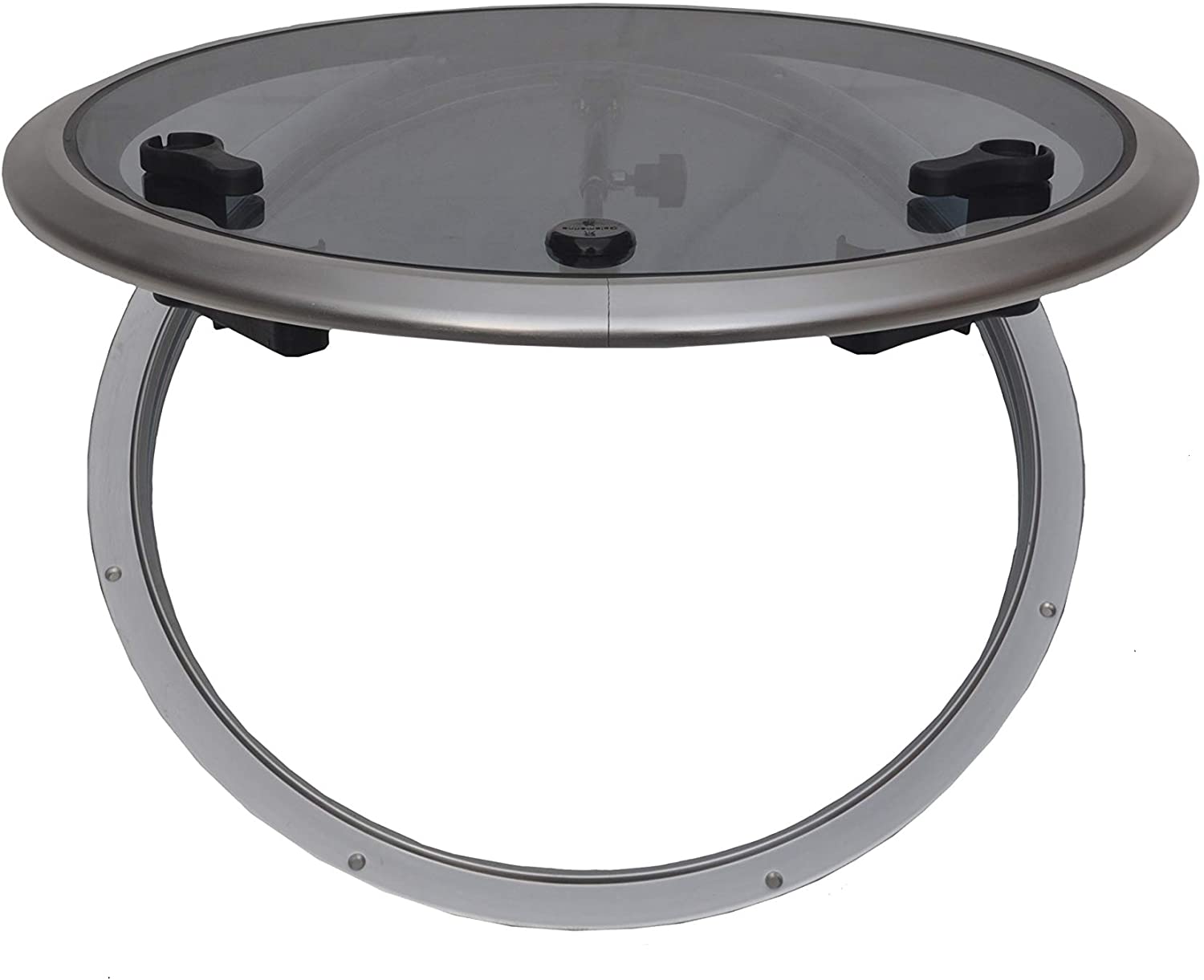

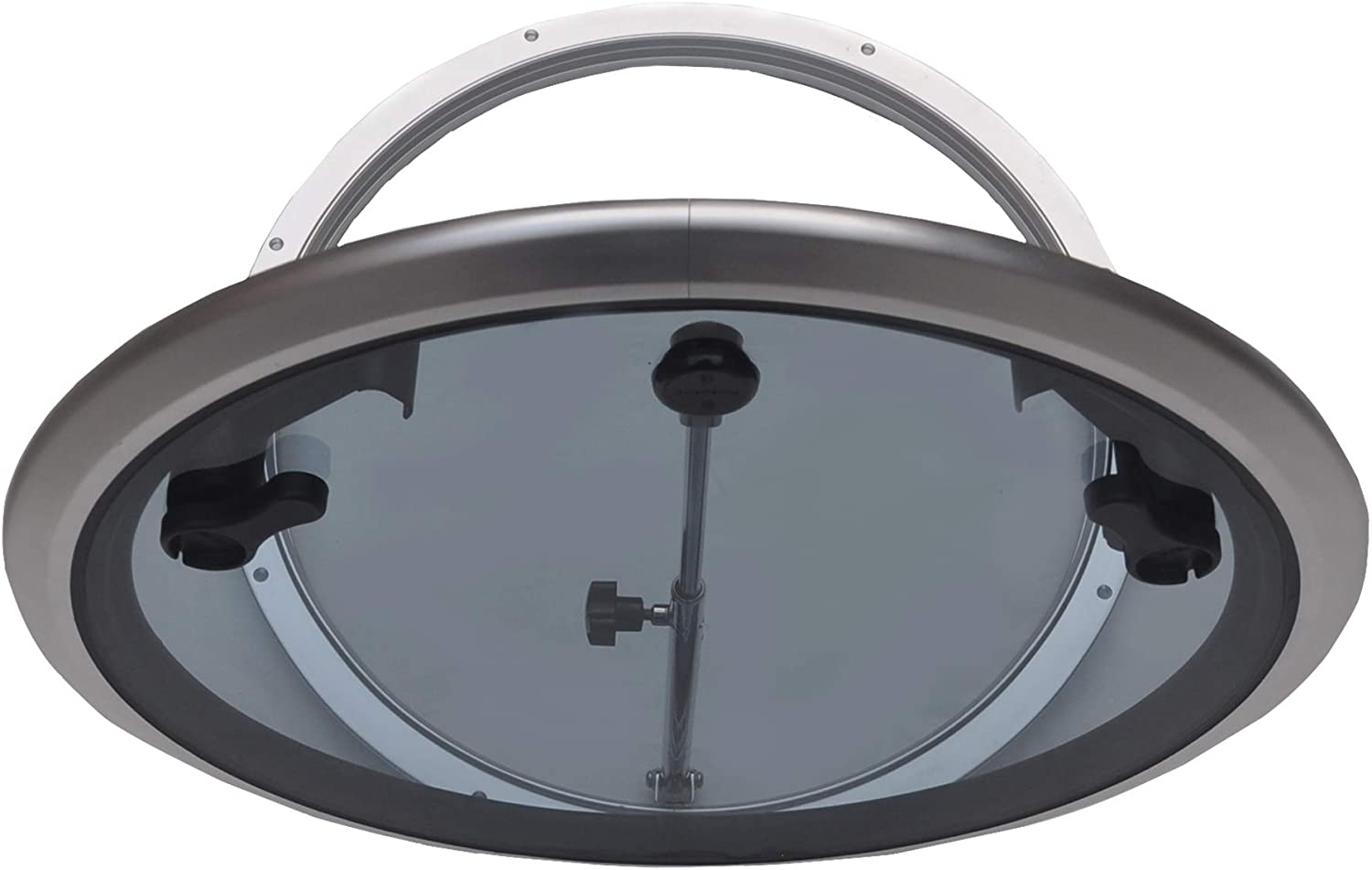

Galamarine Deck Hatch - Anodized Aluminum Round Hatch with Tempered Glass for Boat/Yacht/RV

Name: Galamarine Deck Hatch - Anodized Aluminum Round Hatch with Tempered Glass for Boat/Yacht/RV
Brand: Galamarine
SKU: BR-D575
Price: 488.0 USD
Availability: OutOfStock

$532.00 USD

Shipping calculated at checkout.

Size 16.7" 18.7" 20.7" 22.6" 24.6" 26.6"

Product variants

Quantity

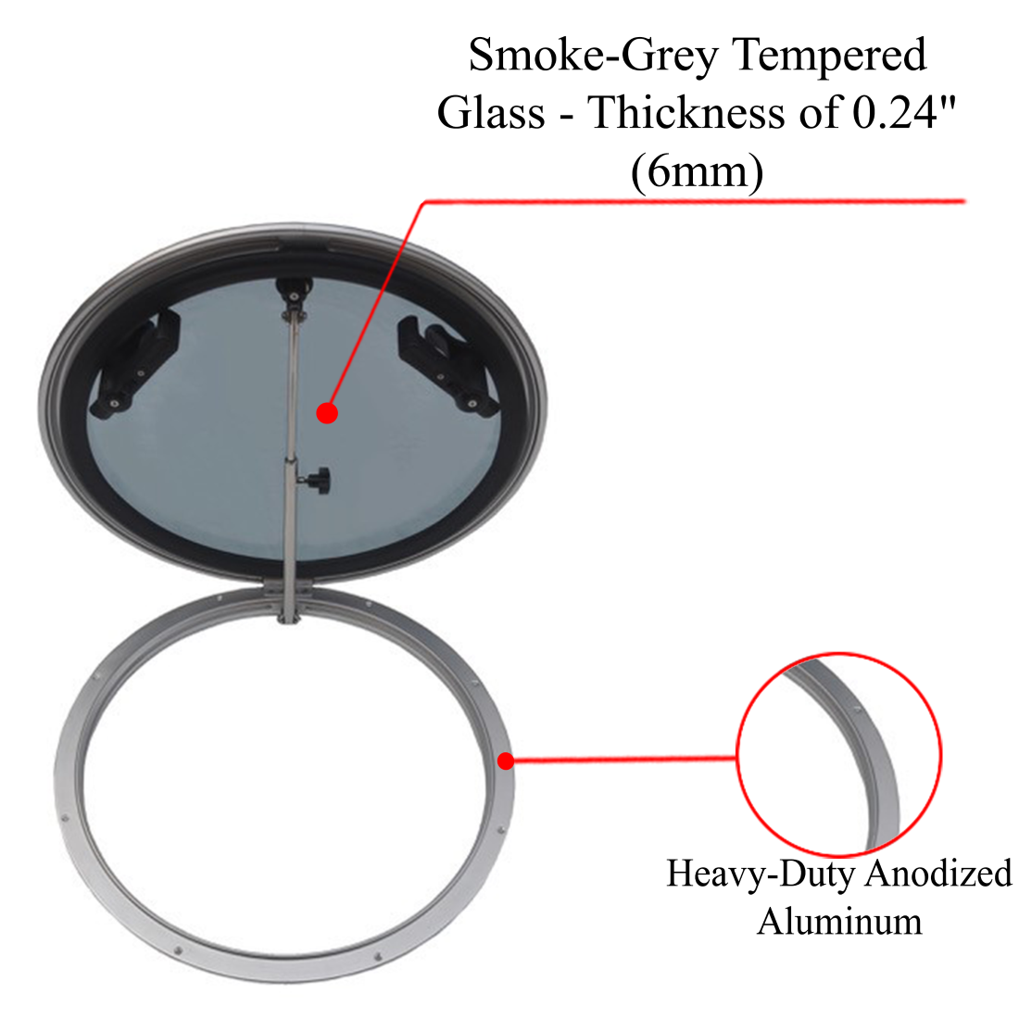

Heavy-duty Anodize Aluminum Hatch Frame for Corrosion Resistance

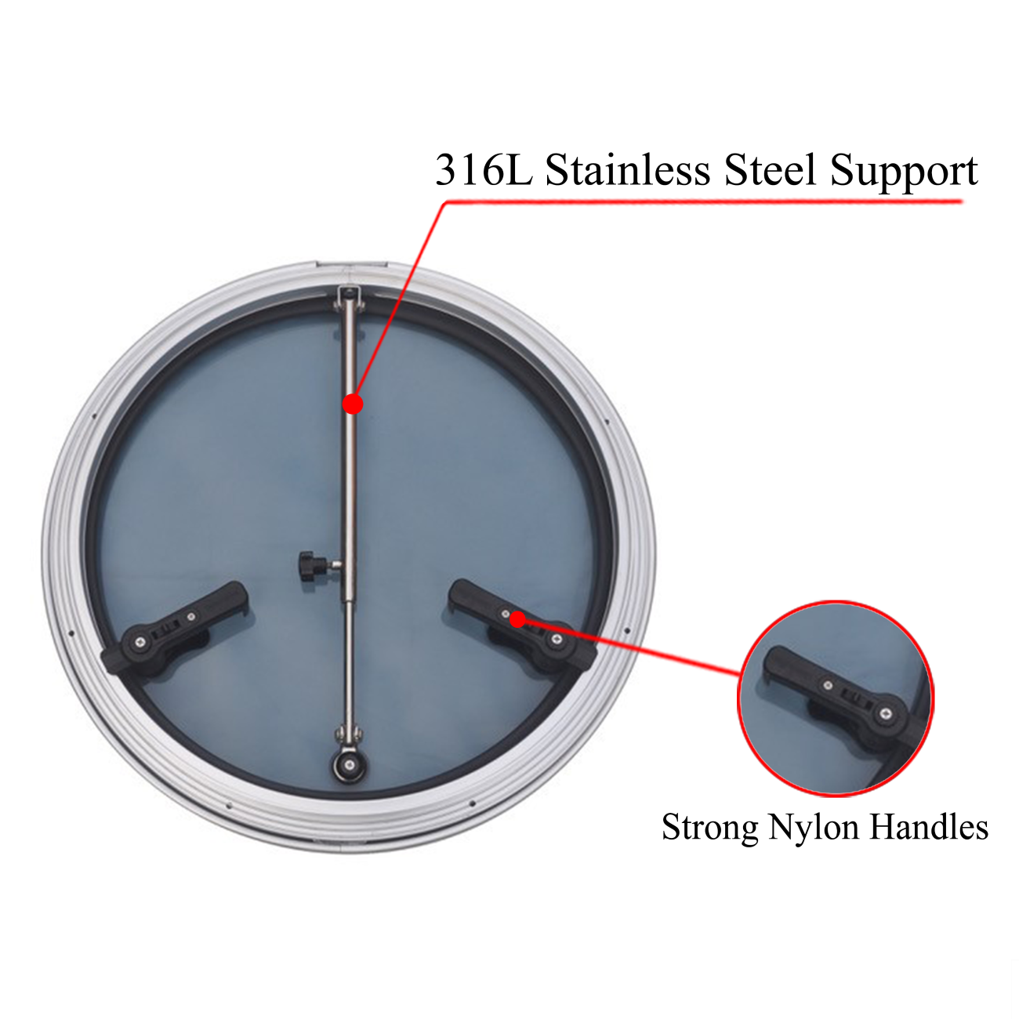

Come with 0.24" (6mm) thick of Smoke-Grey Tempered Glass Top and Durable Hinges
Provide protection against the elements. Good for boat, yacht, ship, and RV.
Please check the Dimension Table for the overall size and cutout size of each model.

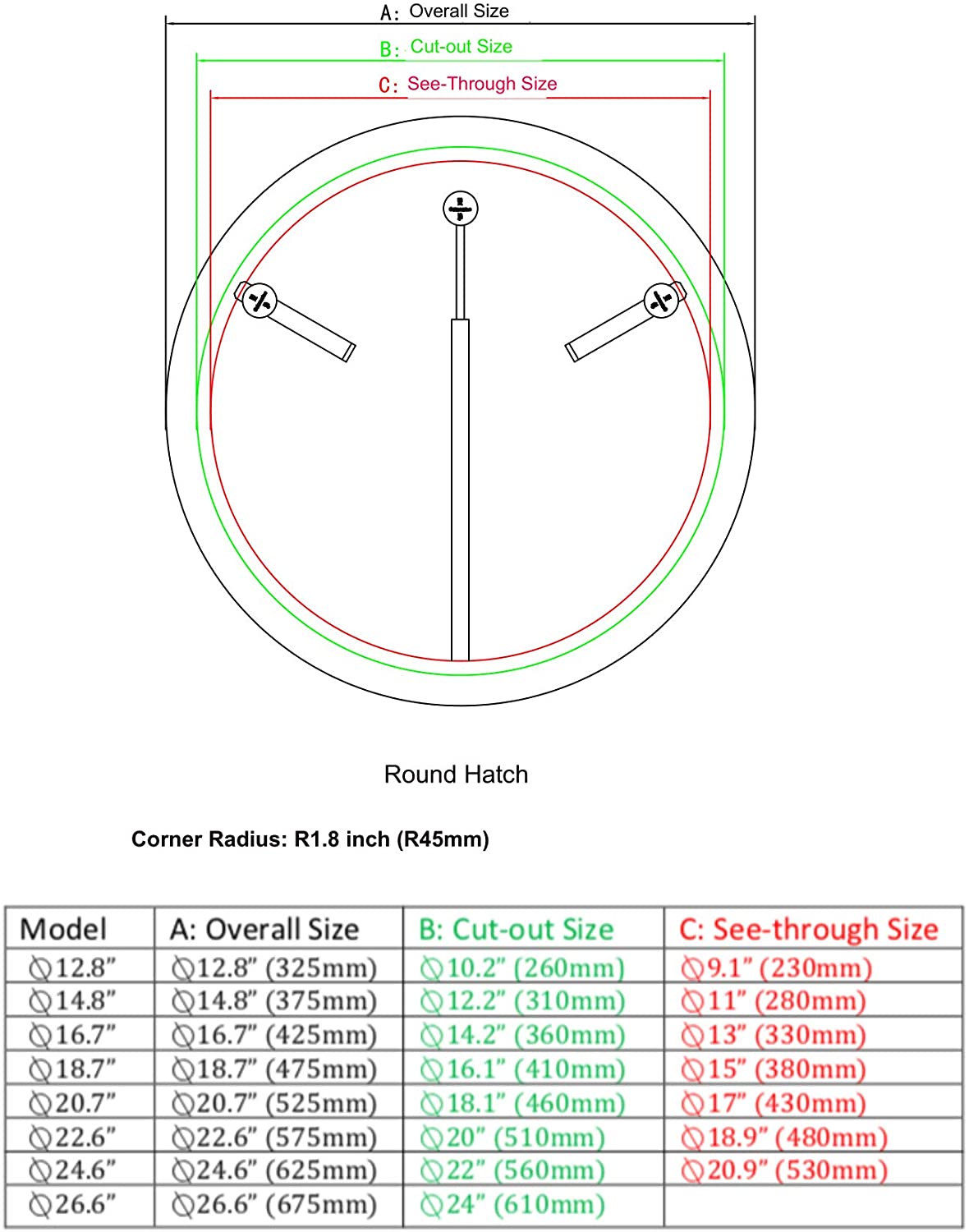

Dimensions of Round Hatch

Model (Diameter)	A: Overall Size (Diameter)	B: Cut-out Size (Diameter)	C: See-through Size (Diameter)
⍉16.7”	⍉16.7” (425mm)	⍉14.2” (360mm)	⍉13” (330mm)
⍉18.7”	⍉18.7” (475mm)	⍉16.1” (410mm)	⍉15” (380mm)
⍉20.7”	⍉20.7” (525mm)	⍉18.1” (460mm)	⍉17” (430mm)
⍉22.6”	⍉22.6” (575mm)	⍉20” (510mm)	⍉18.9” (480mm)
⍉24.6”	⍉24.6” (625mm)	⍉22” (560mm)	⍉20.9” (530mm)
⍉26.6”	⍉26.6” (675mm)	⍉24” (610mm)

NOTE:

Important - Please measure carefully before placing your order. The model number is the Overall size of the hatch, but not the Cutout size.
Please refer to the above Dimension Table for the Cut-out Size.
