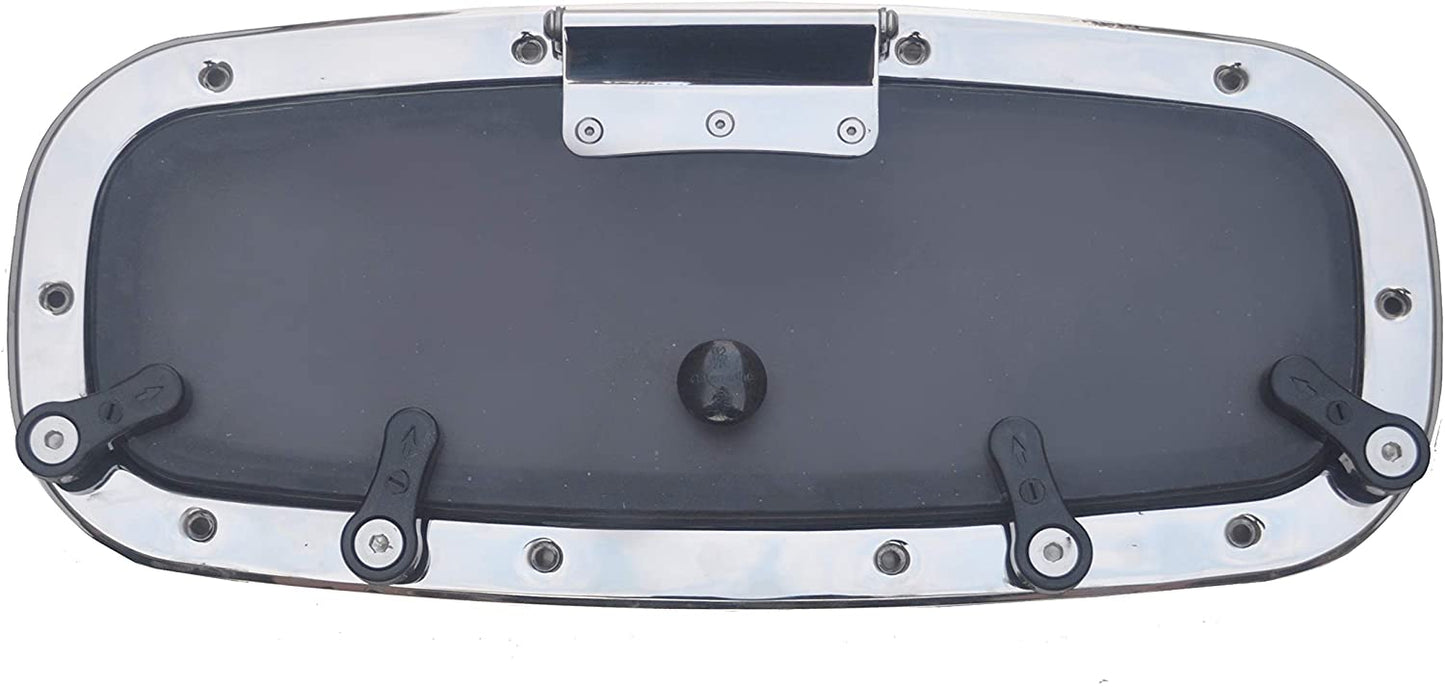

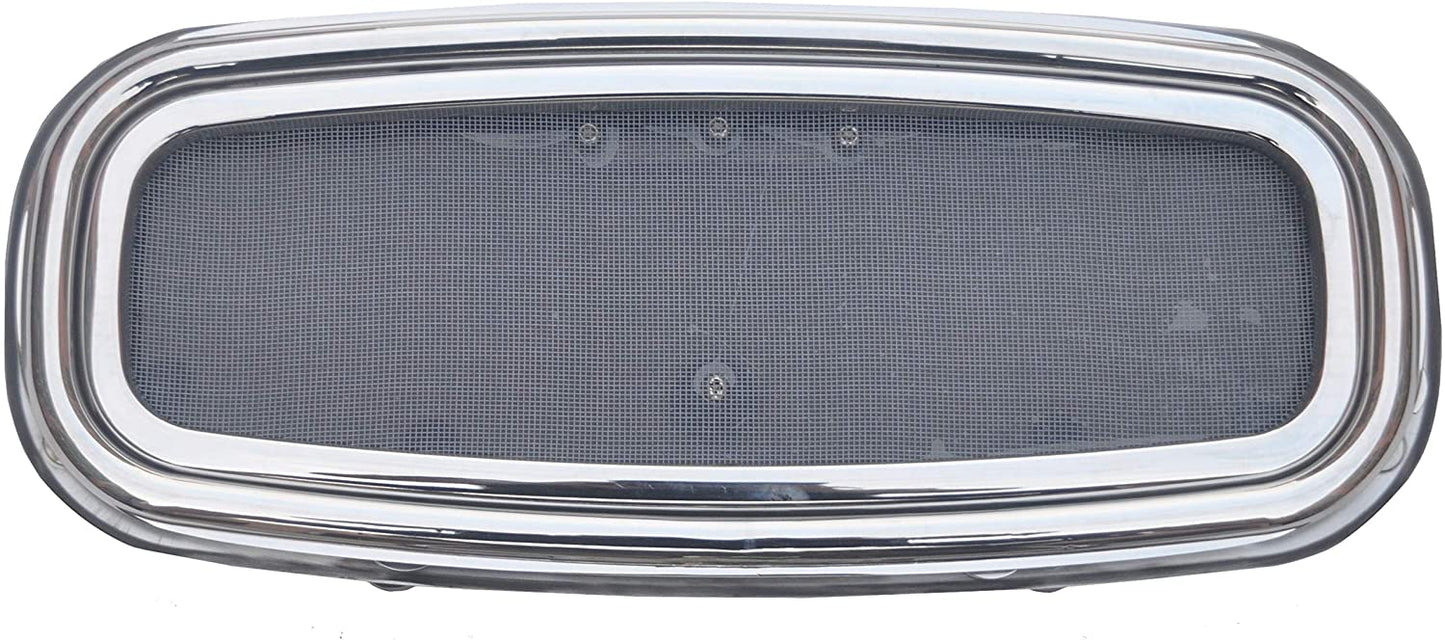

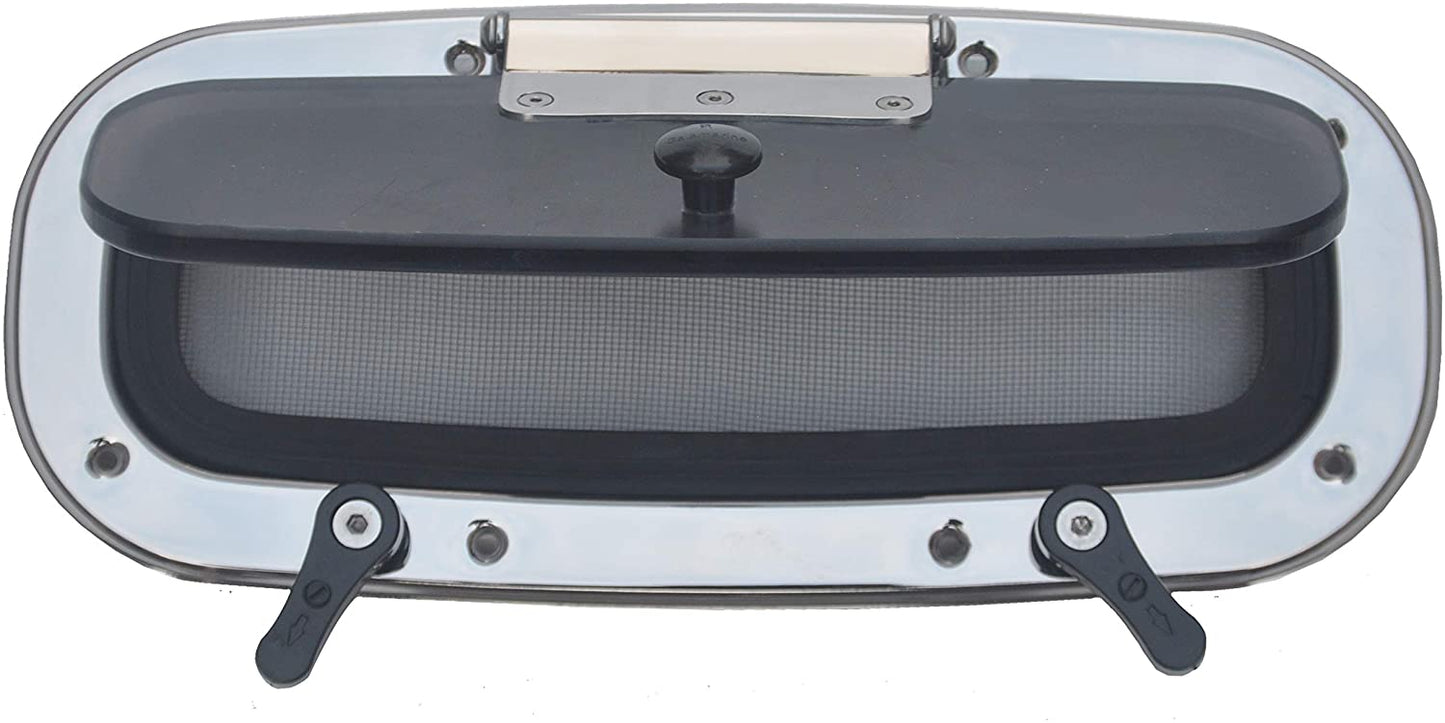

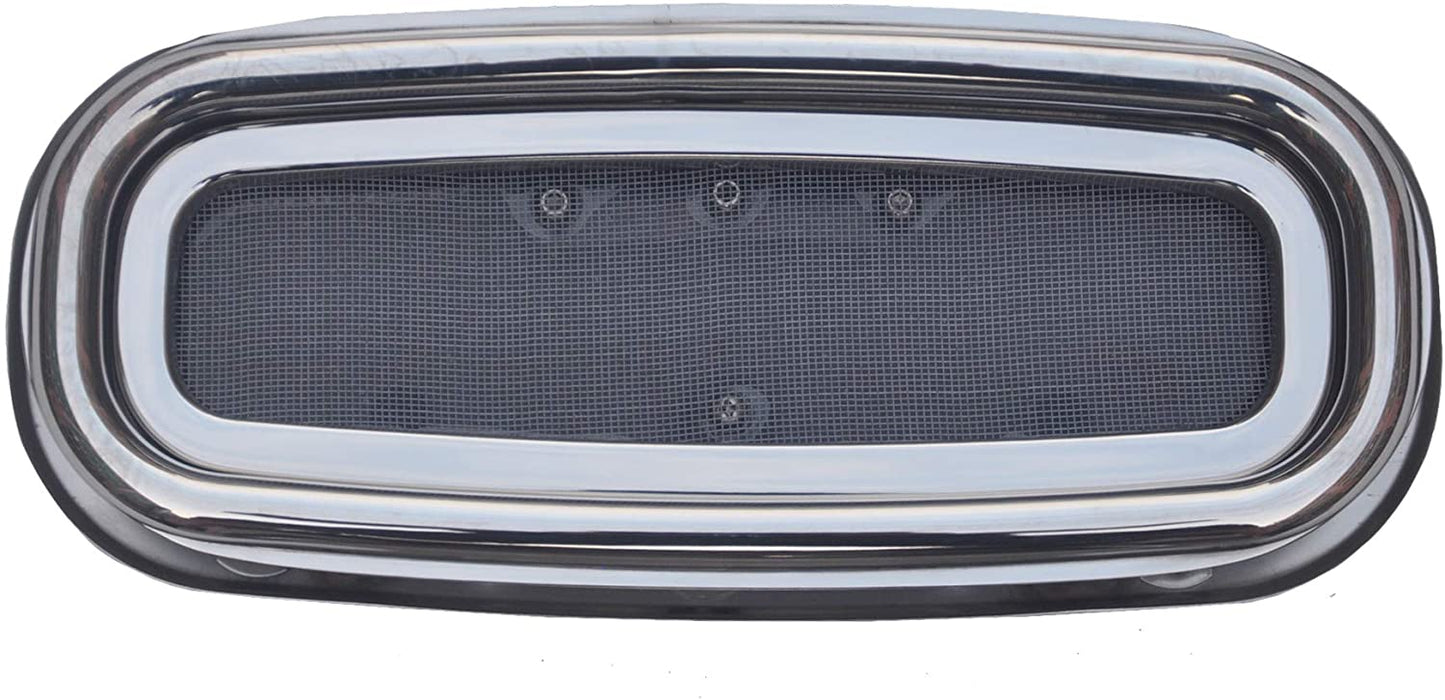

Galamarine Boat Portlight - Stainless Steel Rectangular Portlight for Boat/Yacht/RV
Regular price
$356.00 USD
Regular price
Sale price
$356.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
-
Made of 316 marine grade Stainless Steel, Corrosion Resistance, Provide protection against the elements. Good for boat, yacht, ship, and RV.
-

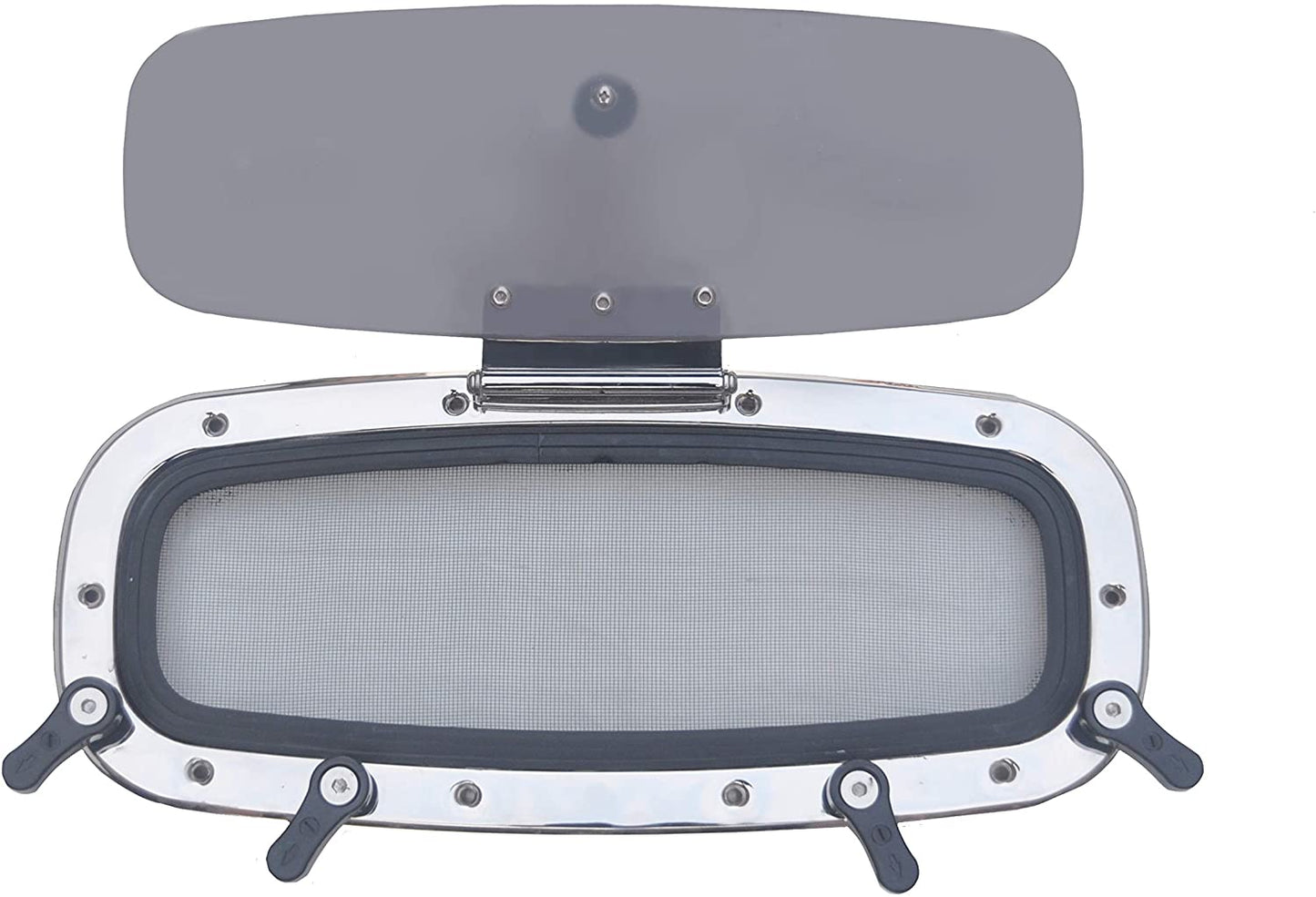

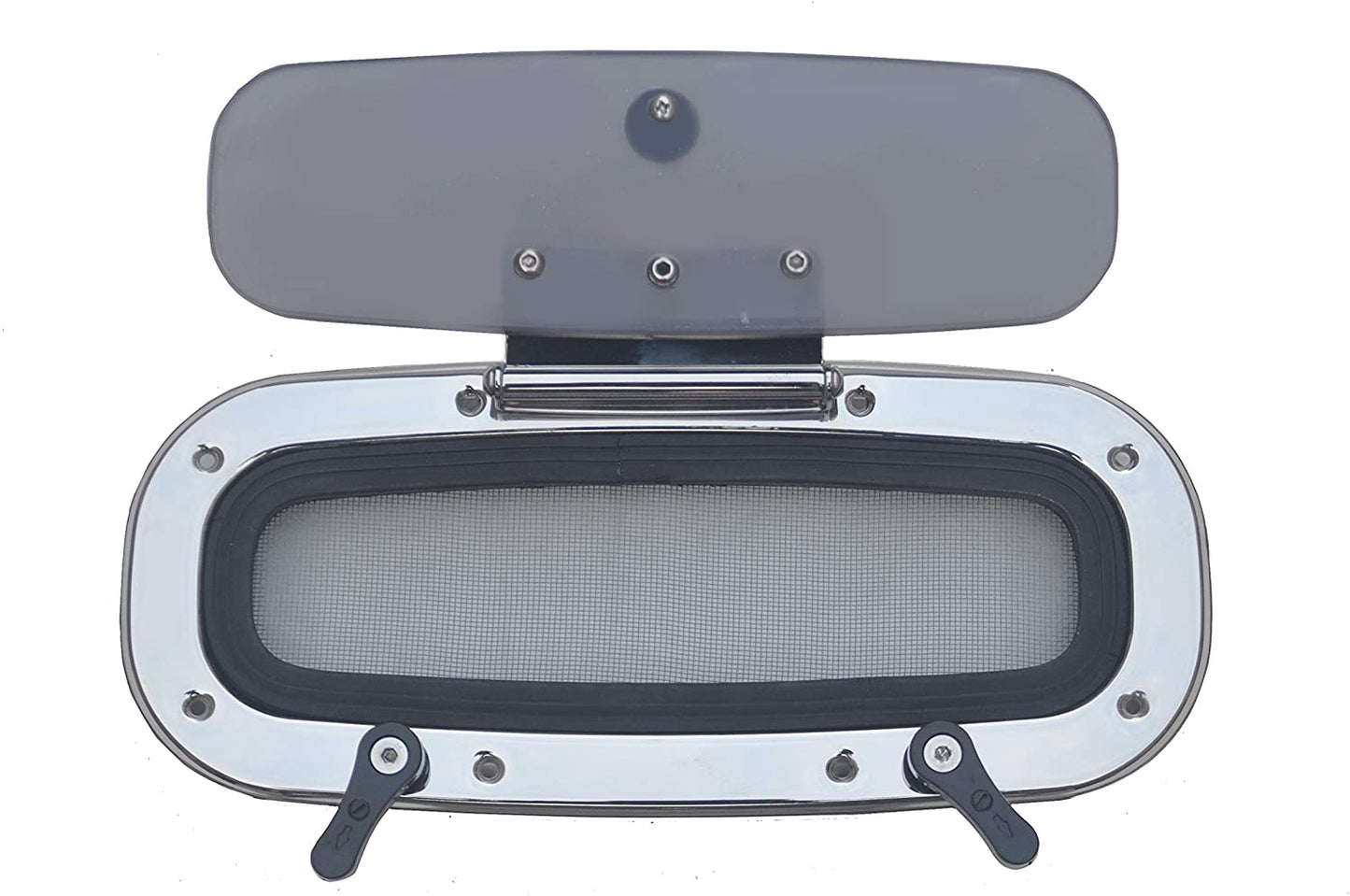

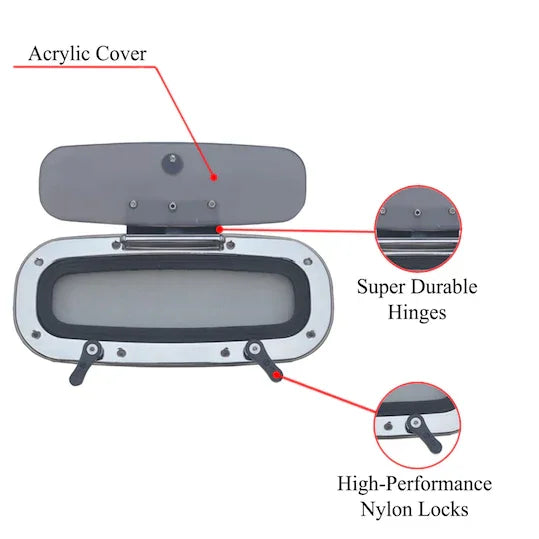

Rectangular Opening, Mirror Polished. Come with Acrylic Cover and Mosquito Screen
-
Standard Model is suitable for Hull thickness of 1"-1.4" (26-36mm); Super Thin Model is suitable for Hull thickness of 0.24” – 0.63” (6-16mm)
-

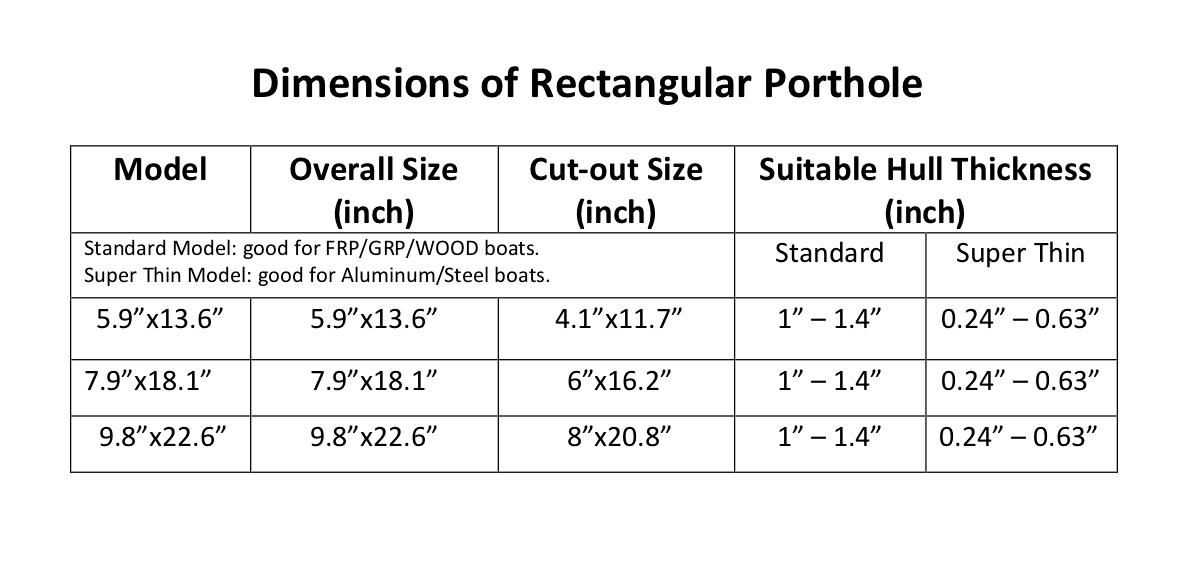

Dimensions of Rectangular Porthole
Model
Overall Size (inch)
Cut-out Size
(inch)
Suitable Hull Thickness (inch)
Standard Model: good for FRP/GRP/WOOD boats.
Super Thin Model: good for Aluminum/Steel boats.
Standard
Super Thin
5.9”x13.6”
5.9”x13.6”
4.1”x11.7”
1” – 1.4”
0.24” – 0.63”
7.9”x18.1”
7.9”x18.1”
6”x16.2”
1” – 1.4”
0.24” – 0.63”
9.8”x22.6”
9.8”x22.6”
8”x20.8”
1” – 1.4”
0.24” – 0.63”
NOTE:
-
Important - Please measure carefully before placing your order. The model number is the Overall size of the portlight, but not the Cutout size.
-
Please refer to the above Dimension Table for the Cut-out Size.
Share
RV Exit Window
- Anodized aluminum frame
- DOT certified, tinted tempered glass, removable screen
- All accessories included: trim ring, screen, cardboard template, screws and gaskets
- Rough opening: 30" x 20"; Overall size: 31-1/4" x 21-1/4". Fit for wall thickness: 1-3/4’’
